8×8 Dot Matrix Module 20×20 (A065)

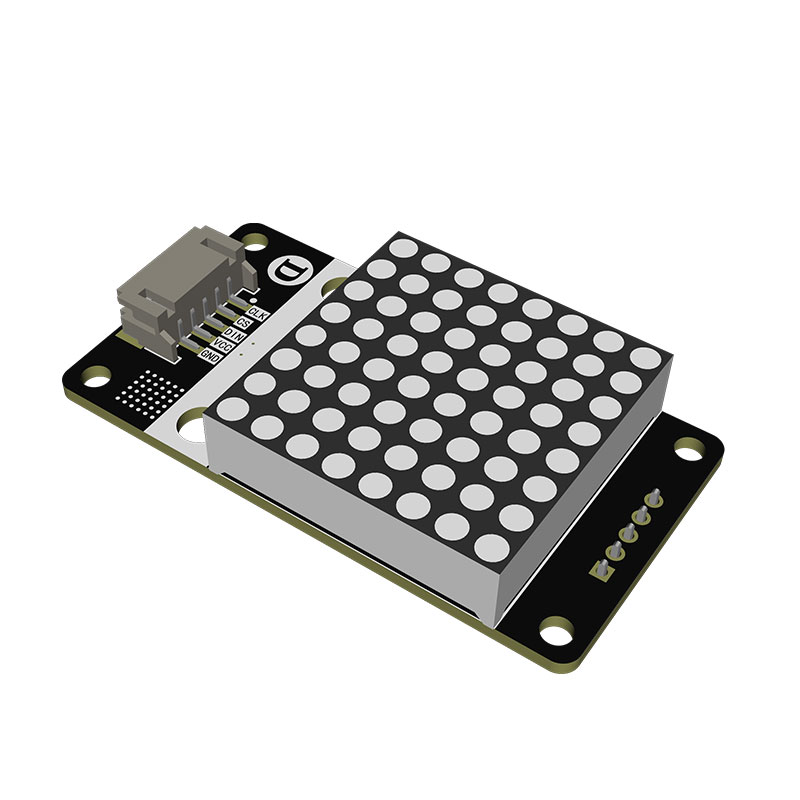

This 8×8 dot matrix module adopts LED1088AS serial-in parallel-out driver. It works with wide 3.3V–5V voltage supply and uses 3-wire control (CLK/CS/DIN). Optional colors: red, green, blue and white. It features high brightness, simple wiring and cascading support. Suitable for expression animations, scrolling numbers, pattern display, maker education and other applications

It adopts three-wire serial communication, occupying only DIN, CLK and CS ports to effectively save MCU IO resources. Equipped with power indicator, pin header and XH2.54 dual interfaces for easy wiri

Built-in 64 LED beads. Static/dynamic scanning drive ensures even illumination and low power consumption to prevent screen burn. Red, green, blue and white monochrome versions are available to satisfy

The driver chip supports serial cascading. Multiple modules can be connected in series to realize large-area spliced display. Mounting holes are reserved on four PCB corners for easy installation on e

BIT-TREE CREATIVITY

STEAM skills like programming will be a core competency for the next generation, and the time to cultivate this ability is now.

Parameter Dimension	Specification Details
Product Model	A065
Product Weight	Cased weight: 16g — Bare PCB weight: 7.5g
Module Model	8×8 Dot Matrix Screen Module 20×20 (A065)
PCB Outline Dimension	60.00mm × 32.00mm
Dot Matrix Specification	8×8 = 64 LED beads, dot pitch 20×20mm, monochrome display (Red/Green/Blue/White Optional)
Driver IC	LED1088AS (Serial input, parallel output, cascade supported)
Supply Voltage	3.3V~5V DC
Communication Interface	3-wire serial control (CLK/CS/DIN)
Interface Specification	XH2.54 Pin Header / PH2.0_5P Dual‑interface Socket

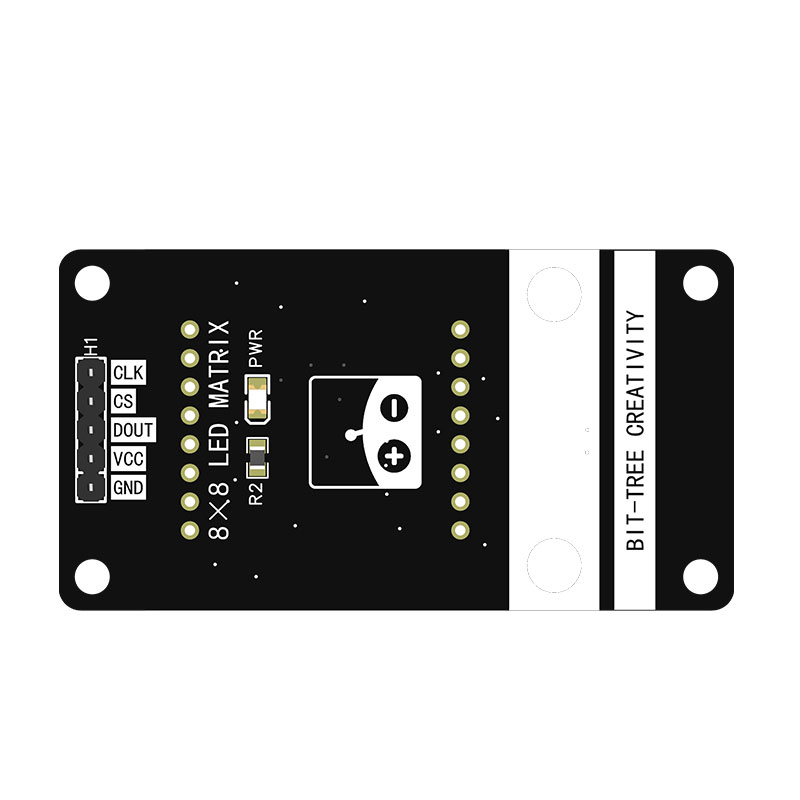

Interface Definition (CN1)	Positive power pin for 3.3V~5V input - VCC Negative power pin, common ground with MCU - GND Serial data input pin - DIN Shift clock signal pin - CLK Chip select/latch signal pin for display data update - CS
Key Feature - Serial-in Parallel-out Driving	Driven with only 3 signal wires to save MCU I/O resources; multi-module cascade supported
Monochrome High-brightness Display	High-luminance dot matrix beads with smaller dot pitch for finer display, optional colors available
Low Power Consumption Design	Static or dynamic scanning drive lowers power consumption and avoids screen burnout
Installation Friendly	Pre-reserved fixing holes at four corners for direct panel mounting on devices
Optional Packaging Solutions	① Anti-static bag soft packaging ② White cardboard hanging hole box ③ Kraft paper box
